SABR

SABR’s transmission assessment capabilities are enhanced by SABR-Gear an integral part of the suite. Users can define initial gear sizes and rate parallel axis gears according to the ISO 6336 standard, including the effect of calculated gear misalignment. This powerful tool enables non-specialists to optimise gear geometry and determine the effect of misalignment on gear life. Immediate feedback is given to the designer of any change to input parameters both graphically and numerically.

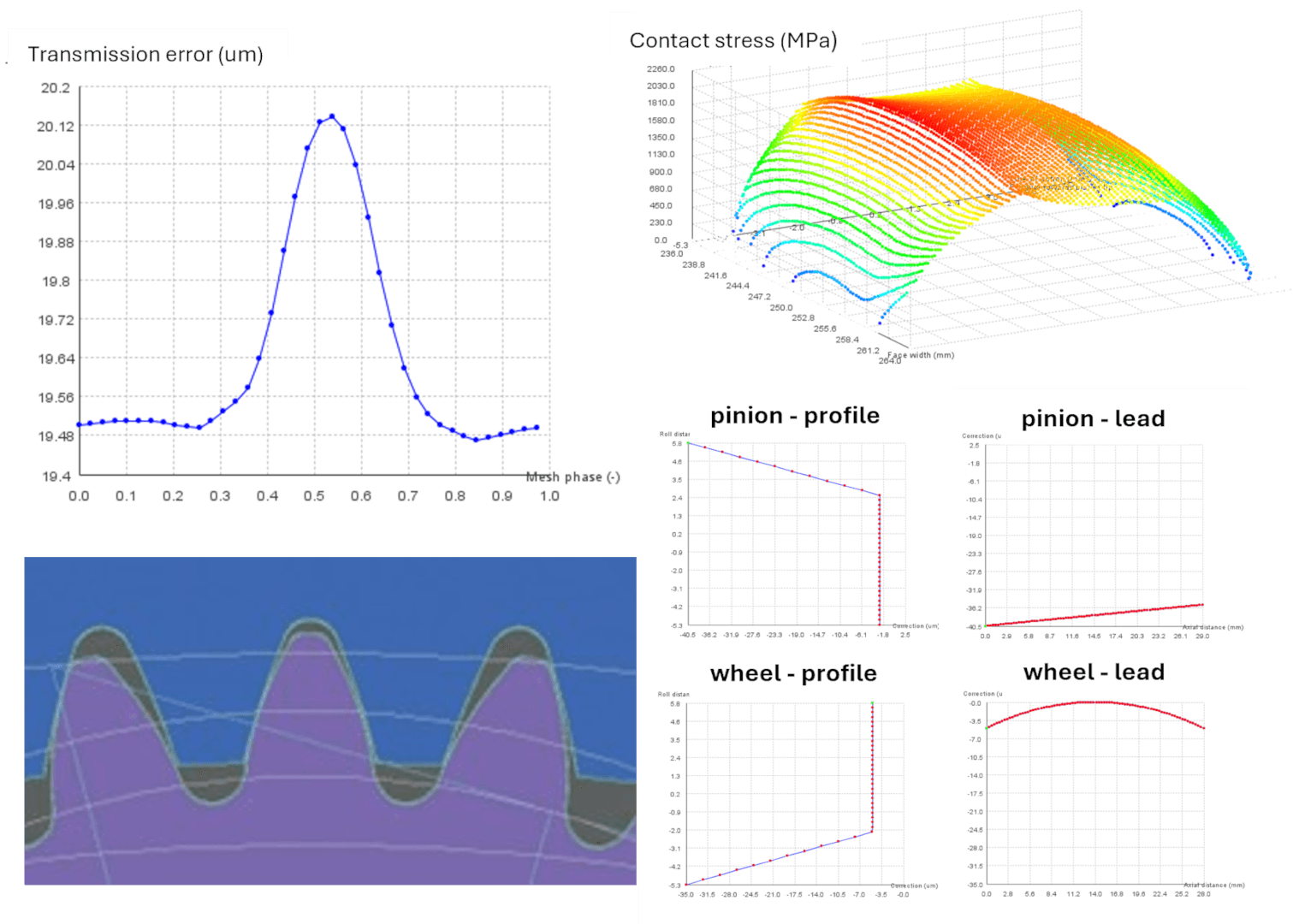

SABR-GEAR Outputs

Parameter sweeps can be carried out on multiple input parameters with results filtered to focus on the optimum areas of interest to deliver the highest efficiency gear pair combinations. Tooth Contact Analysis (TCA) considers the effect of micro-geometry on misalignments for all operating conditions, and can be run in seconds where stress, transmission error, flash temperature and oil film thickness are all outputs by default. Transmission error can be exported seamlessly to Realis VALDYN to perform non-linear time domain Multi-Body System (MBS) analyses of the transmission for NVH assessment.

  • Powerful rapid optimiser delivers viable robust geometry designs
  • Visual representations of clearances and key design attributes, providing immediate feedback
  • Direct import and export interface to SABR
  • Detailed duty cycle function allows multiple loading regimes to be analysed to assess cumulative damage
  • Efficiency calculations combining load and speed dependent losses according to ISO 14179
  • Parametric sweep function helps to explore the design space more comprehensively and filter on critical design metrics for NVH, durability and efficiency.
  • TCA for stress, transmission error, flash temperature and micro-pitting assessment with all duty cycle and misalignments passed from SABR
  • Export to GearLab LDP and DONTYNE Load Analysis Model are also available
